Latest calibration work · September 2026

Toyota calibration gallery

Original job photographs and full calibration videos. The Toyota jobs use the Autel IA700 frame; the Honda Accord story below uses the Autel MA600. Select a photograph to view it full size.

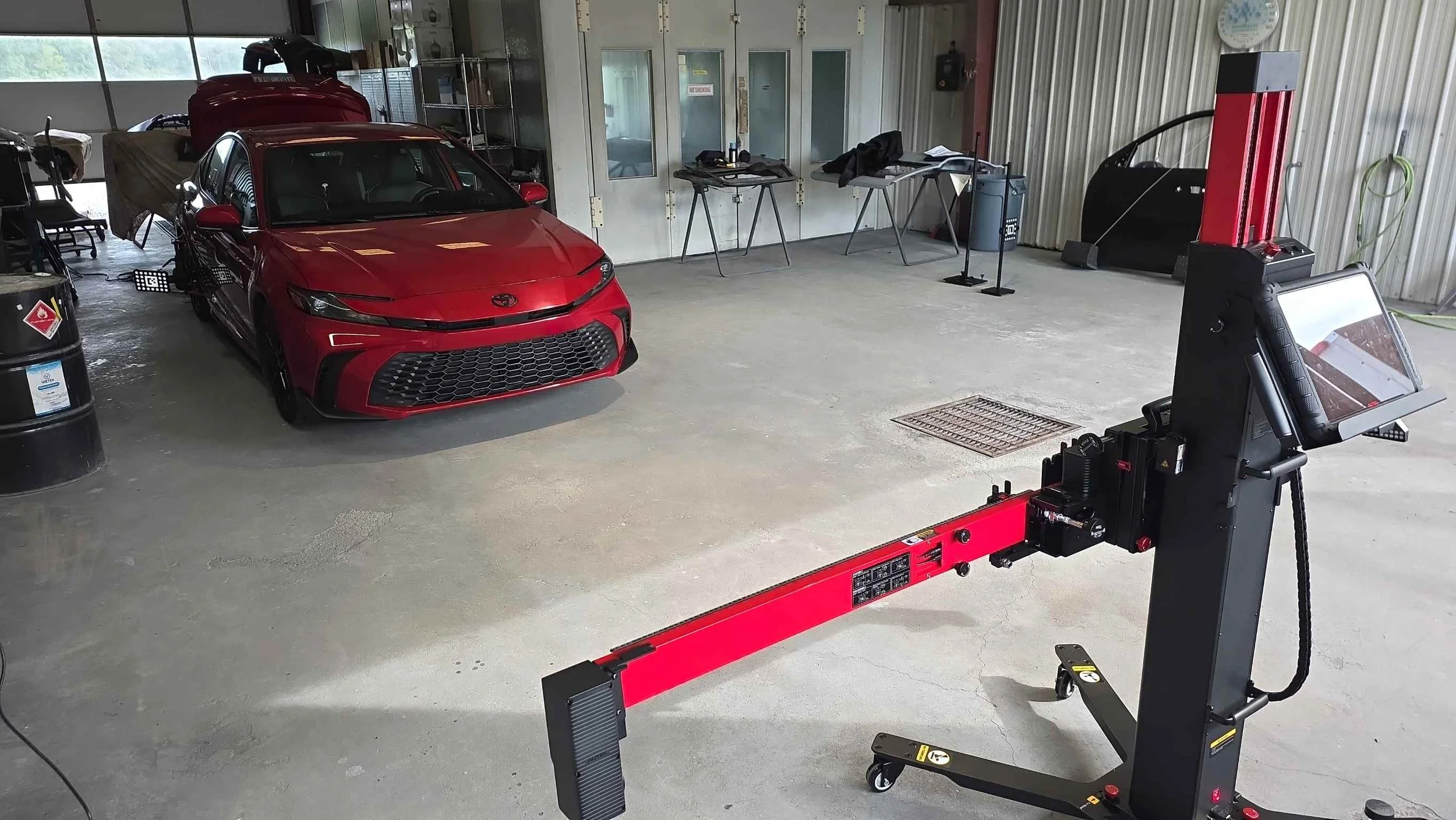

Front camera + adaptive cruise control

2025 Toyota Camry Hybrid

Front-camera and adaptive-cruise-control calibration using the Autel IA700 frame, with successful results recorded for this vehicle.

Watch the full Camry calibration video ↗

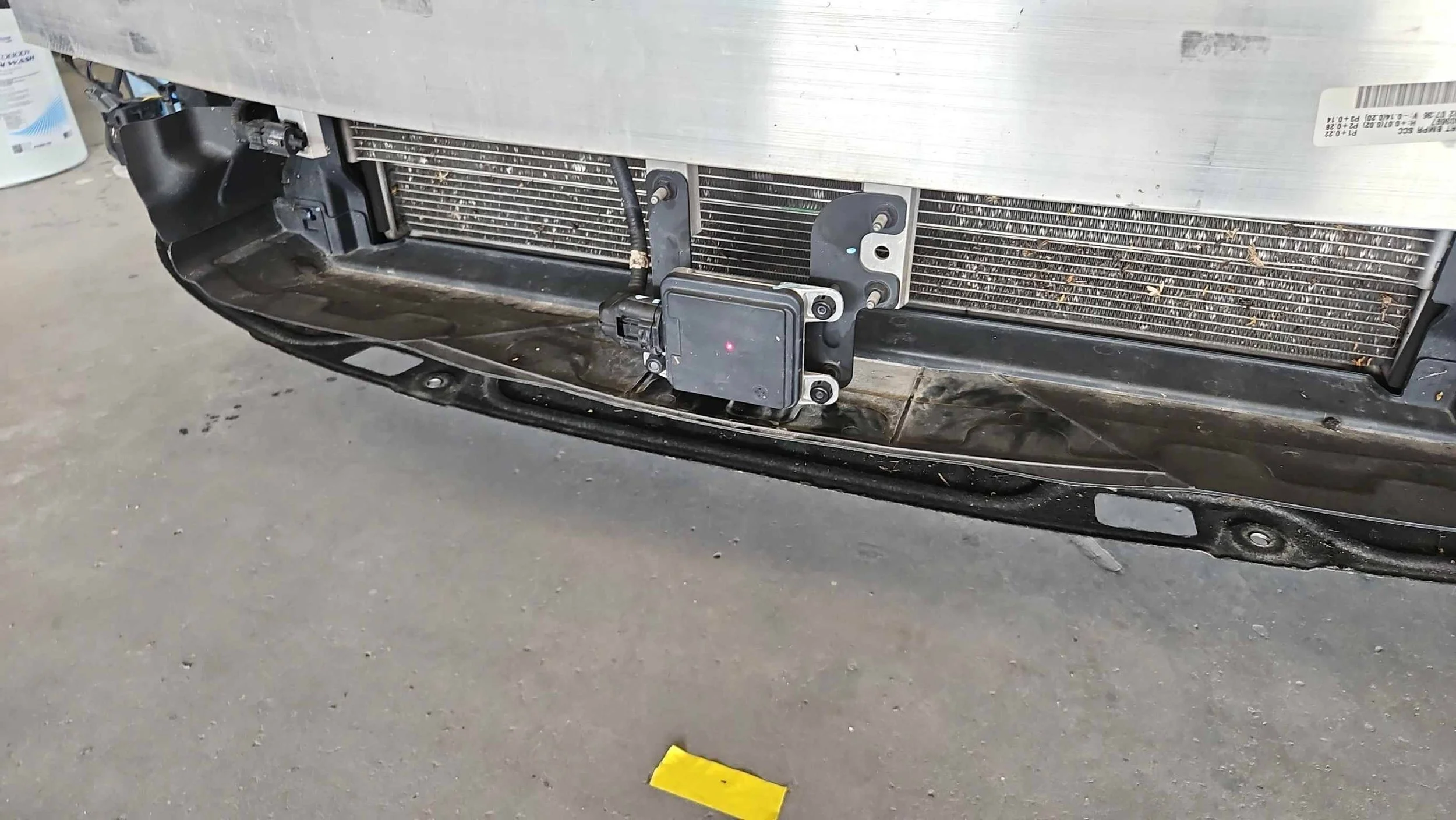

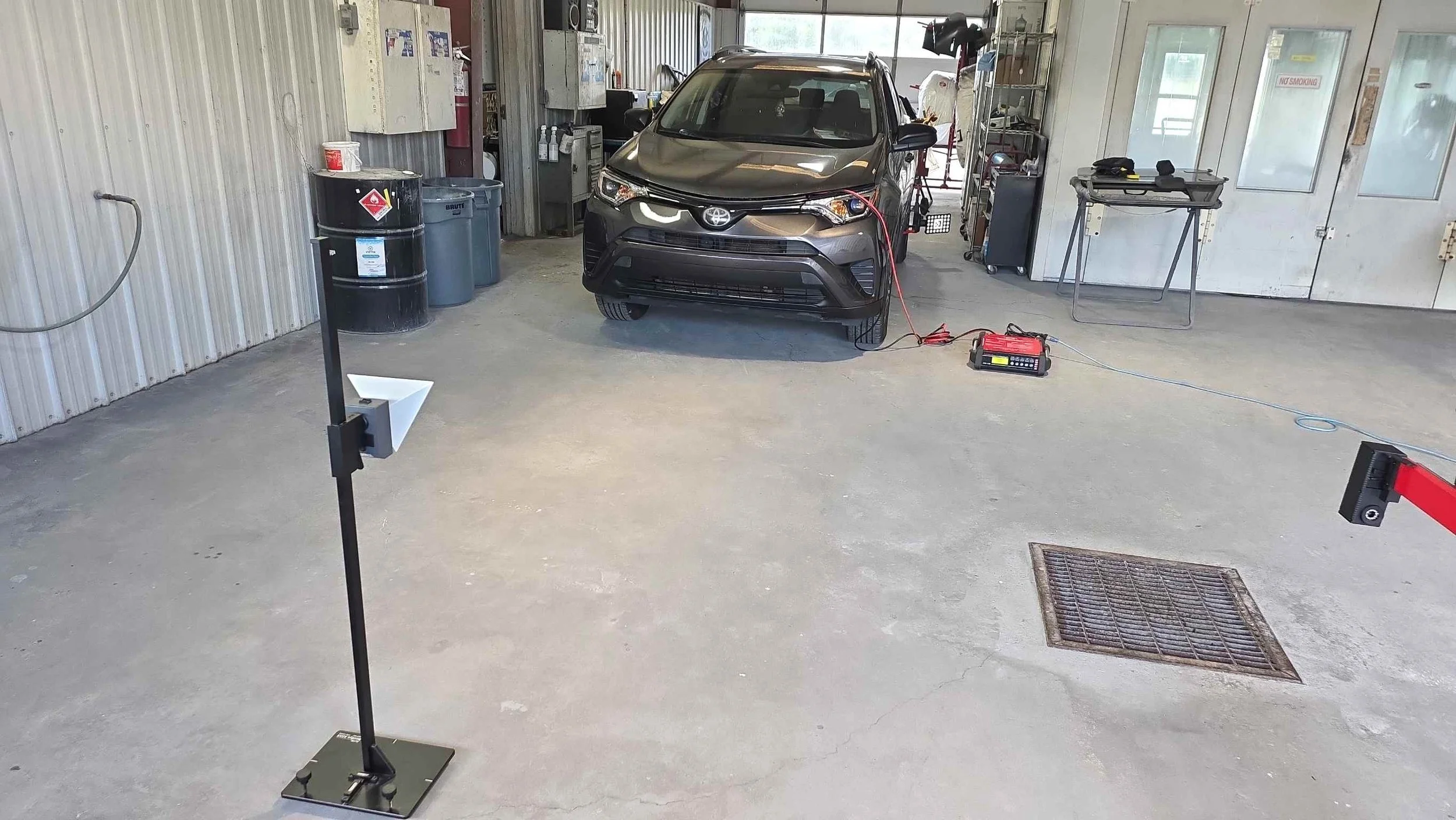

Adaptive cruise control radar

2017 Toyota RAV4

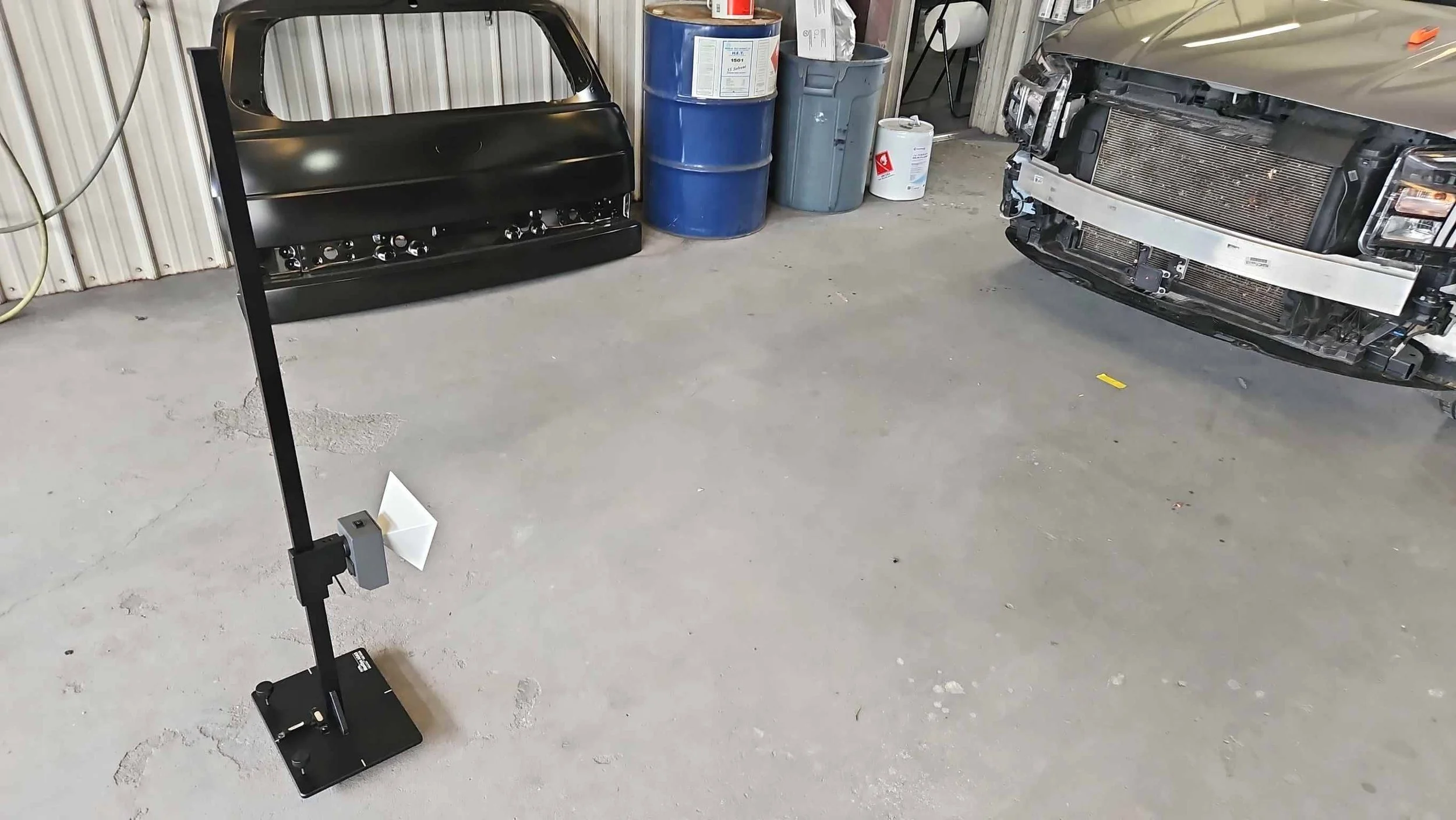

Static ACC radar calibration using the Autel IA700 frame, with a successful result documented for this vehicle.

Watch the full RAV4 calibration video ↗

The complete repair & calibration story

The finish is visible.
The precision is documented.

2021 Honda Accord

From front-end damage to the finished car—with the front-camera and Adaptive Cruise Control (ACC) radar calibration results behind the reveal.

Watch the full story · 2:04 ↗Explore the results ↓

Completed white 2021 Honda Accord after collision repair — The finished Accord · Original repair photograph

Collision repair: Sampson Auto Body & PaintCamera & ACC calibration: SCK Diagnostics Inc

Static front cameraSuccessfulRecorded calibration result

ACC radarSuccessfulRecorded calibration result

Final scan0 DTCs20 systems scanned*

01 / The transformation

Same car. A complete story.

Original photographs show the starting point and the completed collision repair. The calibration film documents SCK's separate camera and radar work.

2021 Honda Accord front grille damage before collision repair — **BEFORE COLLISION REPAIR**Front-end damage documented.

2021 Honda Accord completed front-end repair by Sampson Auto Body and Paint — **AFTER COLLISION REPAIR**Repair completed by Sampson Auto Body & Paint.

*The final scan reports 20 systems scanned and zero diagnostic trouble codes. Some listed modules show no response. These results are not a whole-vehicle safety certification.

02 / See the measured setup, final angles & recorded times

Front camera

Calibration target distance / height: 4,072 mm / 1,500 mm
Frame angle / pitch / roll: −0.01° / +0.01° / 0.00°
Recorded report intervals: 09:27:40–09:44:52
09:45:09–09:58:50
Combined recorded duration: 30 min 53 sec
Success screenshot clock: 09:54

ACC radar

Calibration target distance / frame angle: 4,077 mm / 0.00°
Final vertical / horizontal misalignment: −0.10° / −0.09°
Recorded report interval: 09:59:20–10:19:29
Recorded duration: 20 min 09 sec
Success screenshot clock: 10:18

Report intervals and screenshot clocks are distinct source records; the camera total combines two intervals, not one continuous run. The 4,077 mm measurement is the calibration target distance—not the vehicle's on-road following distance. ACC means Adaptive Cruise Control.

03 / Behind the results: calibration setup photographs

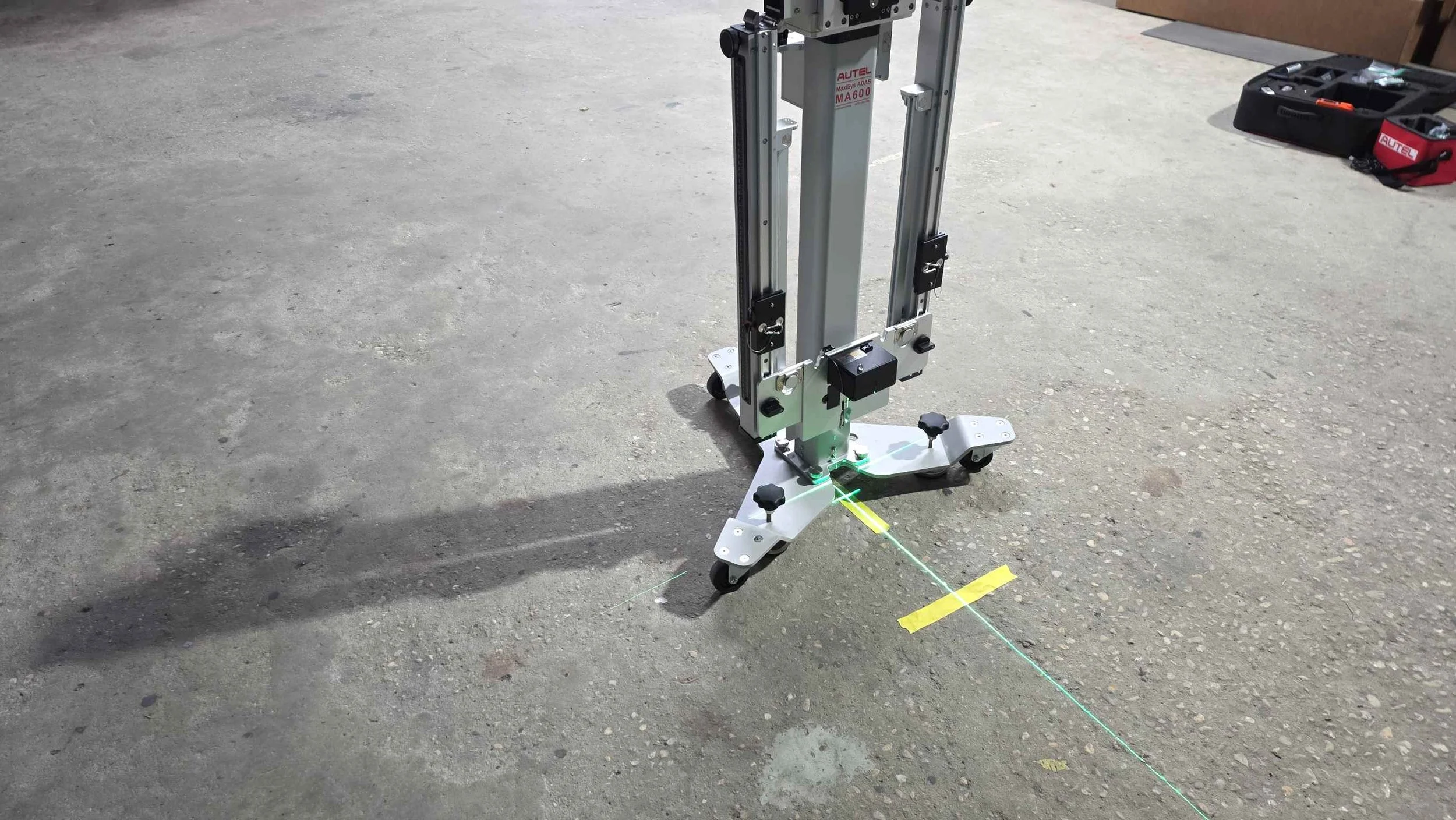

White 2021 Honda Accord positioned with Autel ADAS calibration equipment — Vehicle positioning and calibration-frame setup

2021 Honda Accord — Front-angle view of the Accord and Autel equipment — Front-angle view of the Accord and Autel equipment

2021 Honda Accord — Camera-target placement for FFC and LDW calibration — Camera-target placement for FFC and LDW calibration

2021 Honda Accord — Calibration bay and vehicle setup — Calibration bay and vehicle setup

2021 Honda Accord — Calibration-frame adjustment screen; private identifiers blurred — Calibration-frame adjustment screen; private identifiers blurred

Vehicle and job identifiers are concealed in the calibration-screen image. Select a photograph to inspect it full size.

Completed 2021 Honda Accord side and front view

SCK Diagnostics Inc

The completed 2021 Honda Accord.

Collision repair by Sampson Auto Body & Paint, with front-camera and ACC radar calibration by SCK Diagnostics.

Film: original job photography, synthetic narration and editorial transition sounds. Music: “Checks for Free” by Jason Shaw / Audionautix, CC BY 4.0; edited excerpt with fades, level adjustment and narration ducking.
